Power Supplies Series

HM7042-5, NGE100B, HMC804x, HMP2000, HMP4000, HM8143, NGL200, NGM200, M3SR IN4000A

PRODUCT OVERVIEW
Rohde＆Schwarz 提供適用於各種測試和測量場景的多功能直流電源產品組合。無論您是想配備教育實驗室，還是將電源集成到生產測試系統中，我們都將為您提供合適的設備。

您可以在緊湊型設計的基本台式機型中進行選擇，這些機型可以提供模塊化功能或可以輕鬆為工業實驗室提供動力的高性能產品。

Product name	Number of output channels	Max. output power	Output Voltage per channel	Maximum output current per channel
HM7042-5	3	155.5W	-Channel 1, channel 3: 0 V to 32 V -Channel 2: 0VV to 5.5 V	-Channel 1, channel 3: 2 A -Channel 2: 5 A
NGE100B	2/3	100W	0 V to 32 V	3 A
HMC804x	1/2/3	100W	0 V to 32 V	10 A / 5 A / 3A
HMP2000	2/3	188W	0 V to 32 V	-Channel 1: 10 A -Channel 2: 5 A
HMP4000	3/4	384W	0 V to 32 V	10 A
HM8143	3	130W	-Channel 1, channel 3: 0 V to 30 V -Channel 2: 5 V	2 A

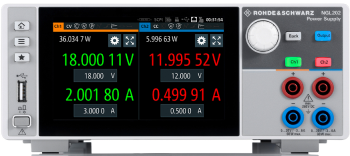

NGL200	1/2	120W	0 V to 20 V	6 A

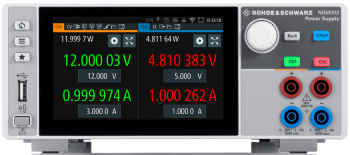

NGM200	1/2	120W	0 V to 20 V	6 A

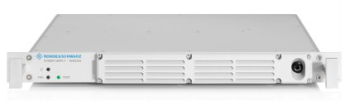

M3SR IN4000A	1	780W	28.4V	27.5A

KEY FACTS

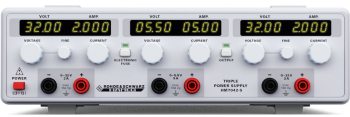

HM7042-5

2 x 0V to 32V/0A to 2A; 1 x 0V to 5.5V/0A to 5A
Total output power: 155,5 W
Floating, overload and short circuit-proof outputs
Protection of sensitive loads by current limit or electronic fuse
Parallel (up to 9 A) and series (up to 69.5 V) operation

NGE100B
NGE100B

R&S®NGE102B with two or R&S®NGE103B with three channels
Max. output power of 66 W with R&S®NGE102B, 100 W with R&S®NGE103B
Max. output voltage of 32 V per channel
Electronic fuse (OCP), overvoltage (OVP)/ -power(OPP)/ -temperature protection (OTP)
USB interface (VCP/TMC), optional LAN (LXI), optional wireless LAN, optional digital I/O (4bit)

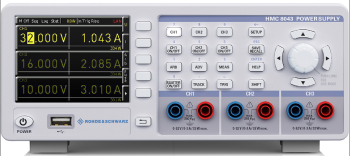

HMC804x
HMC804x

Clear display of all measured parameters
Galvanically isolated, floating and short-circuit proof outputs
Protective functions adjustable for each channel
Ideal power supply for hardware developers and labs
Remote control

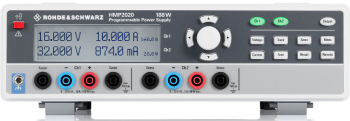

HMP2000
HMP2000

2 or 3 channels with max. 188 W total output power
Maximum output voltage of 32V per channel
Maximum output power per channel: 80 W; except R&S®HMP2020 (CH1: 160W)
Maximum output current per channel: 5 A; except R&S®HMP2020 (CH1: 10 A)
Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)

HMP4000
HMP4000

3 or 4 channels with max. 384 W total output power
Maximum output current per channel: 10A
Maximum output power per channel: 160W
Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)

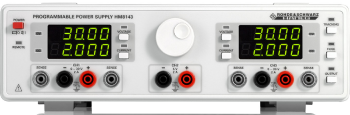

HM8143
HM8143
