Torex Semiconductor
2020/02/04
Expanded Lineup of AEC-Q100(Grade2) Compliant 0.8uA(TYP.) Ultra-Low Quiescent Current Voltage Regulator XD6506 Series
Torex Semiconductor Ltd. (Tokyo Japan: President, Koji Shibamiya, 6616: 1st section at Tokyo Stock Exchange) has launched the XCL6506 series of AEC-Q100(Grade2) Compliant , 0.8uA(TYP.) Ultra-Low Quiescent Current Voltage Regulator.

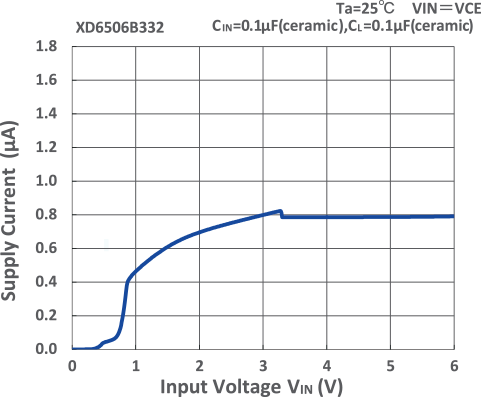

The XD6506 series are positive voltage LDO regulators manufactured using CMOS processes. The series achieves Ultra low supply current, 0.8μA (TYP.) and consists of a reference voltage source, an error amplifier, a current fold-back circuit, and a phase compensation circuit plus a driver transistor.
The series is also compatible with low ESR ceramic capacitors, which give added output stability.The current limiter's fold-back circuit also operates as a short protect for the output current limiter and the output pin. Furthermore, the CE function allows the output of the regulator to be turned off, resulting in greatly reduced power consumption. (Source: Torex website)
